Description:

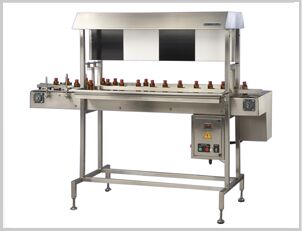

“GMP’s” Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts.

The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the liquid filled, sealed & breakage of bottle. After inspection the bottles are placed in the central track, which is transfer for labeling.

Salient Features:

• A/c frequency variable drive.
• Direct gear drive.
• Length can make as per customer requirement.
• PVC black & white board as per GMP norms.
• UHMW self lubrication guide below chain.
• SS elegantly matt finishing.
• Adjustable height of conveyor belt, to align with other machine of the line
• Self-alignment bearing for easy maintenance.
• Rigid Vibration free Construction for trouble free performance.

Optional:

Castor Wheel with lock.

Direction of Movement	Left to Right	Left to Right
Output *	Up to 150 Containers / minute	Up to 100 Containers / minute
Number of operator	Six (3 x 2, Two side seated)	Four (2 x 2, Two side seated)
Power Characteristics**	0.5 HP/220 V/50 Hz	0.5 HP/220 V/50 Hz
Height of Conveyor**	860 mm to 910 mm	860 mm to 910 mm
Machine Dimensions**	2440 mm (L) x 700 mm (W) x 1525 mm (H)	1880 mm (L) x 700 mm (W) x 1525 mm (H)
Case dimensions	2750 mm (L) x 950 mm (W) x 1750 mm (H)	2150 mm (L) x 950 mm (W) x 1750 mm (H)
Net weight	275 Kgs.	200 Kgs.
Gross Weight	525 Kgs. Approx.	425 Kgs. Approx.

Container Size**	Round Shape	Ø 22 mm to Ø 100 mm Respectively height 58 mm to 240 mm (Height option for other bottle height available)
Container Size**	Flat / Square	15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm X 240 mm (Height option for other bottle height available)
