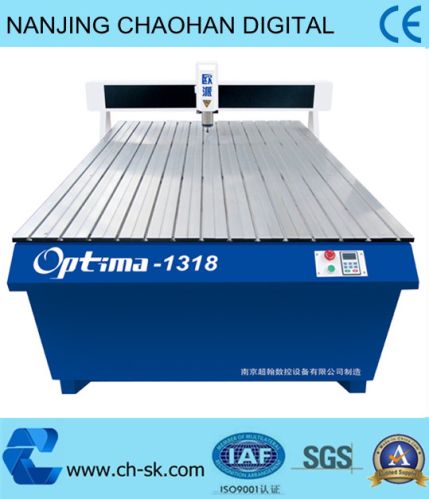

Op-1318 Advertising Engraving Machine

We are offering op-1318 advertising engraving machine.
specifications
1,stable structure, low inertia and no distortion
2,high accuracy, low noise and long life
3,having the breakpoint memory
commodity : op-1318 advertising machine
machine parameter
machine size 1750*2200*1250 mm
working area 1300*1800*100 mm
max carving speed 8 m/min
x,y,z transmission tbi rectangle
voltage 220v/50hz v/hz
x,y,z precision 0.003 mm
drive step
spindle speed 24000 rpm
power of spindle 1.5kw water cooling kw
cutter diameter 3.175 / 6 / 12.7 mm
controlling system dsp
software type 3 ,artcam
file format g code/.u00/.mmg/.nc
x, y transmission ball screw nut
reposition rate 0.03 mm
controlling system original
net weight 800 kgs
total consumption 1600 w
functions:
1 the whole lathe bed adopts the iron casting structure welded with high temperature aging treatment to ensure strong , durable, low noise , long life low inertia without distortion.
2 with the japan made dual screw-nut anti-gap rod, high accuracy ,low noise,long life.
3 equipped with high-speed frequency conversion water cooling spindle.
4 the pre-tight slide block device and popular dustproof structure are used for xyz -axis, which ensure the machine long time continuous work.
5 installed with the unique intelligence prediction algorithm,which could realize the full electrical potential of the machine ,the real high-speed processing and the carving is more smooth.
6 have the breakpoint memory, power outages continued carving ,processing time forecasting functions, ensure that the case of accident or the next day to continue processing.
7 can apply to small sign of repeated positioning, but more suitable for large acrylic cutting ,three-dimensional billboard production,wood plastic mold,etc.
8 powerful compatibility for all kinds software :type3, wentai, atram, castmate other cad/cam software.
9 high-performance division drive can meet long time continuous work.
