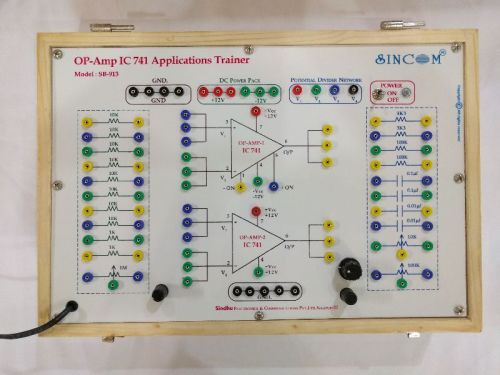

Op-Amp IC 741 Application and Characteristics (Parameter) Trainer SB-913

Listing ID #3524817

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

This has Built-In DC ±12V/1A regulated fixed Power supply, variable ±12V Power supply,Potential divider network to provide V1-V4 DC input levels, Two Op-Amps IC 741 with Open terminals....

View More Details

Send Enquiry

Product Details

This has Built-In DC ±12V/1A regulated fixed Power supply, variable ±12V Power supply,Potential divider network to provide V1-V4 DC input levels, Two Op-Amps IC 741 with Open terminals for interconnection with RC components bank provided on the board to study following applications of Op-Amp IC741, fixed and variable Resistor bank (17 Nos), fixed capacitors bank (4Nos), detailed instruction manual with circuit diagram and procedure to determine all 16 parameters of given Op-Amp.
Objectives :

To Study the following Op-Amp based Applications.
To study the Op-Amps applications Trainer
IC 741 as Inverting Amplifier.
IC 741 as Non-Inverting Amplifier.
IC 741 as an Adder Circuit.
IC 741 as an Averager Circuit.
IC 741 as Subtractor Circuit.
IC 741 as Unity Gain Amplifier.
IC 741 as AC Amplifier.
IC 741 as Differential Amplifier.
IC 741 as a first order Low Pass Filter
IC 741 as a first order High Pass Filter
IC 741 as Differentiating Circuit.
IC 741 as Integrating Circuit.
IC 741 as Square wave generator Circuit.
IC 741 as Schmitt Trigger Circuit.
To Study the Op-Amp Parameters/ Characteristics/ Specifications

Accessories Included : Set of Patch Cords, Operating Manual.
