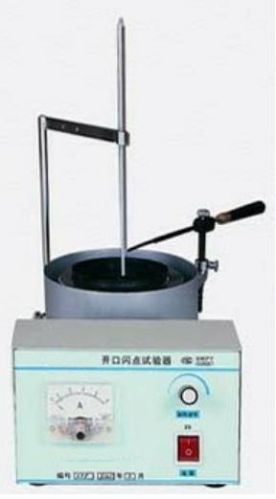

Open Cup Flash Point Tester Gd-267

GD-267 Open Cup Flash Point Tester
The instruments is designed and made as per the National Standard GB/T267 �Test Methods for Flash Point and Fire Point of Petroleum Products (Open Cup Methods)� and Industry Standard of Petrochemical SH/T0318 �Technical Requirements for Open Cup Flash Point Tester�. It is used to determine the flash point and fire point of lubricating oil and Dark petroleum products.
Technical parameters
1. Power supply: AC 220 V±10%�50Hz;
2. Outer crucible:
(1) Material: Carbon structural steel;
(2) Diameter of upper opening: Φ100±5 mm;
(3) Height: 50±5 mm;
(4) Diameter of bottom: Φ56±2 mm;
3. Inner crucible:
(1) Material: Carbon structural steel;
(2) Diameter of upper opening: Φ64±1 mm;
(3) Height: 47±1 mm;
(4) Diameter of bottom: Φ38±1 mm;
(5) Scale line: there is a line 12 mm away from the rim of upper opening and a line 18 mm away from the rim of upper opening.
4. Gas tube: the diameter of nozzle isΦ0.8�Φ1 mm. The inner surface of tube is smooth and it can adjust flame to 3 to 4 mm.
5. Heater: Heated by an electric furnace. Heating power is 1000 W and adjustable.
6. Thermometer: 0�360 �; each scale division is 1 �. It conforms to GB/T514.
7. Ambient temperature: �35 �;
8. Relative humidity: �85�;
9. Total power consumption: not more than 1100 W;
