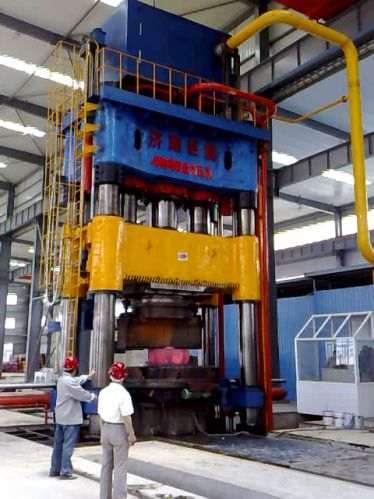

Open Die Forging Hydraulic Press, Brand Name : JUNENG

₹ 9.05 Cr / 10000000 10000000 Set

MOQ1 Set(s)
CertificateISO9001:2000
Brand NameJUNENG
Power2860KW
Availability480T
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

CertificateISO9001:2000
Power2860KW
Availability480T
Brand NameJUNENG
Stroke2500mm
First capacity17000KN
Speed at approach300mm/s
Carring capacity of shifting table160T
Shut height4000mm
Stroke of shifting table4400mm
Capacity40000KN
Speed at return300mm/s
Secondly capacity23000KN
Overall height above floor12500mm
Size of shifting table6000x2200x400mm
Degree of forging45t/min
Thirdly capacity40000KN
Working pressure28.5Mpa
Speed of shifting table200mm/s
Diameter of column520mm
Capacity of return2500KN
Distance between columns center4500x2000mm

We are offering open die forging hydraulic press, open die forging press
800t-15000t
oil hydraulic
working pressure 25mpa, 31.5mpa, 63mpa,100mpa
2-column 4-column
prestressing frame
welding beam casting beam
moveable working table
rotary forging table
rexroth pump
special designed cartridge valves
siemens plc.
