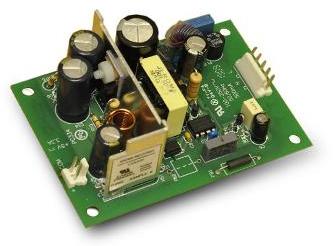

Open Frame

Medical, ITE and General Purpose Applications
Standard Specifications
Universal Input Voltage:
90-264Vac 47-63Hz
Output Voltage Regulation:
1% Typ., 5% Max., for a 100% to 0% Load change.
Operating Temperature:
-20C to 75C
Maximum Output Ripple:
5.0 - 6.0V: 50mVp-p
6.1 - 24V: 100mVp-p
24.1 - 36V: 150mVp-p
36.1 - 48V: 200mVp-p
Designed for Continuous Duty
Hold-Up Time : 25mS Minimum @ 120 Vin
Short Circuit and Over Load Protection
High efficiency design meets Energy Star and Blue Angel operation guidelines. No load power draw is less than 1 watt.
SELV Output
Low leakage input EMI filter meets 100uA medical leakage current category for UL60601.1 type BF equipment
EMI Immunity: Meets EN50082.1 requirements for ESD, modulated RF field and EFT. Meets IEEE C62.41 Level A3 requirements
EMC: Meets the EMC directive for Residential, Commercial and Light Industrial
EMI Emissions: Meets FCC CFR part 15 class B, CISPR11, CISPR22, EN55011, EN55022 (All class B), Both Conducted and Radiated emissions 100% tested on all prototype units. Radiated measurements by correlation procedure.
Over 100,000 hours calculated MTBF at 40 C ambient temperature
2 Hour Minimum Loaded Burn-in at 40C Ambient
5 Year Warranty
