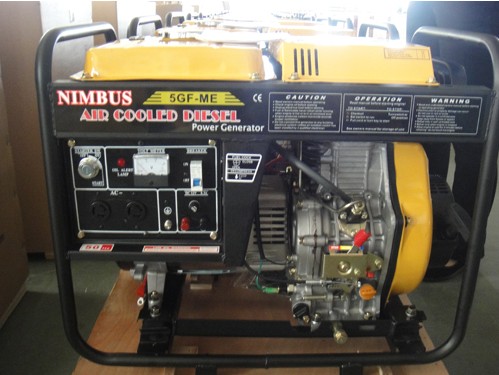

Open-Frame Diesel Generator (NB3800-5800DCE-1)

₹ 9,050 / 600 600 Set

MOQ50 Set(s)
Model NumberNB3800DCE
Brand NameNimbus
Place of OriginChina
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Diesel generator Trademark: NIMBUS, SUPER TIGER, OEM Standard: ISO9001, CE, EMC, EPA(Engine) MODEL NB3800DCE NB5800DCE Rating frequency(Hz) 50 60 50 60 Rating Voltage(V) 220/230 240/120 220/230....

Product Details

Diesel generator
Trademark: NIMBUS, SUPER TIGER, OEM
Standard: ISO9001, CE, EMC, EPA(Engine)
MODEL NB3800DCE NB5800DCE
Rating frequency(Hz) 50 60 50 60
Rating Voltage(V) 220/230 240/120 220/230 240/120
Rating current(A) 12.2 13.8/27.5 18.3 20.8/41.7
Rating output power(KVA) 2.8 3.3 4.5 5
Rating rotation speed(r/min) 3000 3600 3000 3600
DC output 12V/8.3A
Power factor(cos) 1
Phase Single-phase, 3-phase
Dimension(LXWXH)(mm) 660*500*565 740*480*640
Net weight(kg) 97 110
Structure model Open cart type
Engine model NB178FE NB186FE
Engine type Single-cylinder, 4-stroke, air-cooled, direct-injection, diesel engine
Displacement(cc) 296 406
Compression rate 20: 01 19: 01
Rateing output/Speed KW(HP)/(rpm) 3.7(5.0)/3000 5.7(5.8)/3000
Starting system Recoil/Electric start with battery
Fuel tank capacity(L) 13.5
Lube capacity(L) 1.1 1.65
Fuel type Diesel-0# (summer), Diesel-10# (winter)
Lube brand SAE10W30(above CC Grade)
Low oil pressure alarm system With
