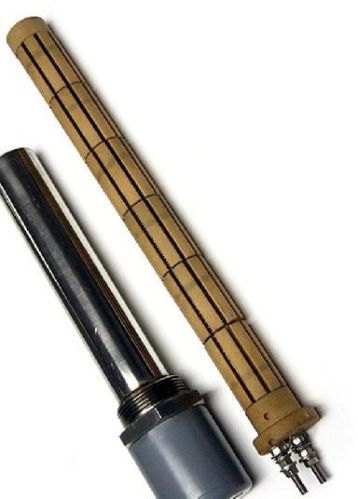

Heatbird Bobbin Heater, Certification : Ce/ISO 9001:2008

To serve the requisite demands of our clients, we are engaged in manufacturing & exporting a qualitative range of bobbin heater. The offered heater is manufactured by our diligent team of professionals using the finest grade raw material as well sophisticated technology. Our provided heater is used in the heating of liquids disassembly. In addition to this, the offered heater is thoroughly inspected against several parameters to attain maximum satisfaction of our valuable patrons.

specification:
- standard voltage: 240 to 440 v other than that please consult
- standard diameter:8.2 mm and 11 mm other than that please consult
- maximum temperature: 250 degree
- standard sheath material ss 304
- connection stud will be provided.
- high voltage tested.

Features:
- sheath material from ss, incoloy, titanium, alkaline etc.
- mgo insulation.
- precisely design with uniform heat distribution.
- high strength.
- customized size & design
- brass as well m.s. & ss flanges is available.
- silver brazing.

application:
- radiant heating
- dies and manifolds.
- immersion heating.
- to heat up oil in any industries.
- textile industries.
- chemical heating

ordering information
- flange diameter, thickness, noã¢ï¿½ï¿½s of holes
- pcd holes and their diameter.
- flange thickness
- one size thread would be there if 2 side want please consult.
- flange material
- length of sheath in mm after flange.
- specifiy if connenection wire wanted.
- voltage & wattage.
- any specific cold zone (standard cold zone will be 5 mm min.)
- other than standard sheath material please mention which wanted.
- if flp head wanted specify in advance.
