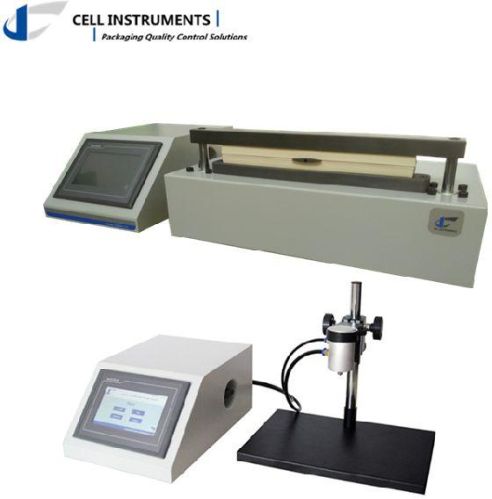

Open Package Burst Tester, Brand Name : Cell Instruments

Open package burst tester is applicable in testing the heat seal technics of variety of flexible packaging bags with single open edge. Besides, it could also be used to evaluate the bursting strength, leak character of the packages as well as the raw materials.
1.1. features
plc control and touch screen operation;
positive pressure design, easy to operate, stable and reliable performance.
selectable test modes among burst test, creep test, creep to failure.
real time display of test data, results;
in accordance with multiple international standards;
1.2. specifications
model lsst-01 for open package
pressure range 0 ~ 600 kpa; 0 ~ 87.0 psi (standard)
port size φ6 mm pu hose
max. Width of package: 300 mm
power supply ac 220 v 50 hz
dimension 400 mm (l) × 270 mm (w) × 180 mm (h) mainframe
operation conditions temperature 10~40 ℃, humidity 20~70 % rh
