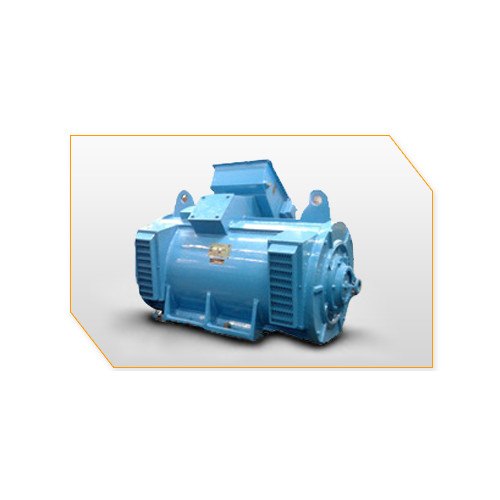

Open Type Cage Motor, Voltage : 380/415/550 V

₹ 5,000 - ₹ 10,000 / unit

Frequency50/60 Hz
Country of Origin380/415/550 V
CoolingIC01
Rotor TypeCage
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1969

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of Origin380/415/550 V
Frequency50/60 Hz
StandardIEC34-1/IS325
EnclosureIP21/IP23
Frame Size160 to 355 mm
InsulationF/H
Pole2/4/6/8
MountingIB3(Foot) / B5(Flange),B35(Foot Cum Flange)
Rotor TypeCage
Output Range15 to 250 kW
CoolingIC01

Cage-Open Type motors are specially designed for very safe environment with IP23 protection where IP55 protection is not required, thus reducing the capital cost of motors. Motors are offered in Low Voltage & High Voltage variants. Owing to efficient Design and Construction, motors have a High output to weight ratio. Motors are Reliable, Rugged and have Low Noise and Vibration. Motors are suitable for Pumps, Compressors and Fans. Low Voltage motors are offered from 15 to 250KW and High Voltage motors are offered from 250KW and above.

Applications:
