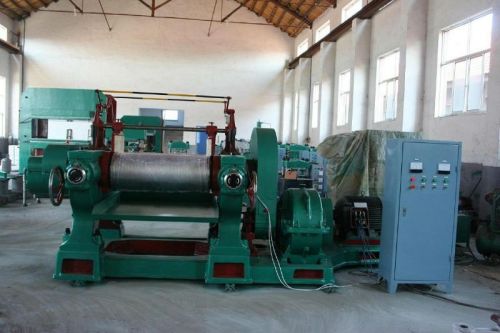

Open Type Rubber Mixing Mill, Brand Name : Jinrunqi

This open mixing mill(rubber mixing mill) is main used in Natural rubber refining, raw rubber and compound mixing
Type XK-150 XK-250 XK-300 XK-360 X(S)K-400A X(S)K-450A X(S)K-560
Working diameter of rolls (mm) 150 250 300 360 400 450 560
Working lenghth of rolls(mm) 280 620 750 900 1000 1200 1530
Working line speed of front roll(m/min) 11.24 14.4 15.1 16.25 18.65 24.5 29.09
Friction ratio of front and rear roll(m/min) 1:1.4 1:1.17 1:1.27 1:1.25 1:1.27 1:1.27 1:1.2
Max gap(mm) 8 8 8 10 10 15 20
Capacity per.batch(Kg) 1-2 10-15 15-20 20-25 18-35 25-50 50-65
Driving motor power(Kw) 7.5 18.5 22 30 37 55 90
Overall dimensions (LxWxH)(mm) 1080x796x1415 3400x1500x1500 3580x1550x1695 3780*1850*1740 4250*1850*1870 5200*2380*1770 6120*2282*2000
