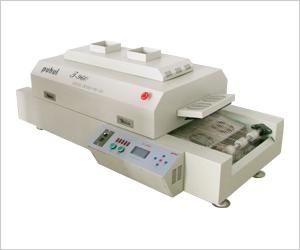

Operate Automatic Reflow Oven

We are offering operate automatic reflow oven.
Features:
1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the led and bga components.
2. This machine is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent pid controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.
3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.
4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.
6. Use pid intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay non-contact output can effectively avoid the ic or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.
7. Transmission system adopt imported frequency conversion motor, pid closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.
8. Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ã�â±10mm/min.
9. Independent cooling zone, to ensure the pcb board of low temperature when the required.
10. Friendly human-machine operation interface, perfect lcd display, no need to connect with the pc, can watch the whole repairing process very clearly.
11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the t-960 to be easily bench positioned, transported or stored.
technical parameters
model t-960
the heating zone quantity upper3/down2
the length of the heating zone 960mm
the heating type intelligent level sirocco and rapid infrared heating
the cooling zone quantity 1
maximum width of pcb board 300mm
the operation direction leftã¢ï¿½ï¿½right
delivery options net transmissionã¯â¼ï¿½chain transmission
the speed of conveyer belt 0-1600mm/min
the power supply three phase 5 line 380v 50/60hz
peak power 4.5kw
heating up time around 15mins
temperature control range room temperatureã¯â½ï¿½300ã¢ï¿½ï¿½
temperature control mode pid closed-loop control
temperature control accuracy ã�â±1ã¢ï¿½ï¿½
pcb temperature distribution deviation ã�â±2ã¢ï¿½ï¿½
overall dimensions 1450�630�470
machine weight 160kgs.
