Operate Automatic Reflow Oven

We are offering operate automatic reflow oven.
1. T962a description:

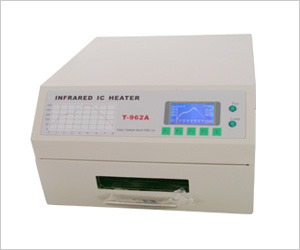

the infrared ic heater t962a is a micro processor controlled reflow-oven. It can be used for effectively soldering various smd and bga components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.
a windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of smd/bag and other small electronic parts mounted on a pcb assembly. The t962a may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
2. Features
(1) a large infrared soldering area
drawer panel area: 300*320mm; this increases the usage range of this machine drastically and makes it an economical investment.
(2) choice of different soldering cycles
parameters of eight soldering cycles are predefined and the entire soldering process can completed automatically from preheat, soak and reflow through to cool down.
(3) special heat up and temperature equalization with all designs
uses up to 1500 watts of energy efficient infrared heating and air circulation to re-flow solder.
(4) ergonomic design, practical and easily operated
good build quality but at the same time light weight and a small footprint allows the t962a to be easily bench positioned transported or stored.
(5) large number of available functions
the t962a can solder most boss-eyed or double-face pcb boards small parts, for example chip, sop, plcc, qfp, bga etc. It is the ideal rework solution from single runs to on-demand small batch production.
technical parameter
power supply ac110v/ 50hz ac220v /60hz
rated power 1500w
maximum soldering area 300ã�320 mm
temperature range 0�-280�
cycle time 1�8 min.
