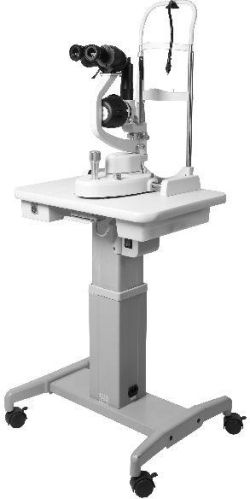

Ophthalmic Halogen Lamp Illuminated Zeiss Style Standard Slit Lamp

₹ 2.24 Lakh / Set

MOQ1 Set(s)
MaterialMetal
Model NumberS280C
Brand NameVisioncare Medical
CertificateCE, FDA
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Model NumberS280C
Brand NameVisioncare Medical
CertificateCE, FDA
Light SourceHalogen Lamp, LED
MaterialMetal
Storage ConditionZeiss Style
Power SourceHalogen Lamp
Country of OriginChina

Standard slit lamp
zeiss style, halogen lamp illuminated
model: s280c
ce, fda approval
technical specifications
microscope part
microscope type galilean type
magnification change revolving drum( 2 steps)
total magnifications 10x,16x
ocular magnifications 12.5x
ocular field ¢18mm
pupillary adjustment 52mm~78mm
diopter adjustment            ±6d
field of view ¢22mm(10x),¢13.5mm(16x)
slit illumination part
slit width               0~14mm continuous
slit length             1~14mm continuous
lamp 6v20w halogen lamp
slit angle               0°~180°
filters heat absorption, red free, cobalt
blue
aperture diameters 4mm, ¢8mm, ¢3.5mm, ¢0.5mm
intensity of illumination ≥50klx
instrument base
longitudinal movement 90mm
lateral movement 100mm
vertical movement 30mm
fine base movement 15mm
chin-rest
vertical movement 80mm
fixation led
power supply
input voltage                      110v~220v
input frequency                 50hz60hz
power consumption 30va(max)
output voltage                    lamp 6v, fixation 3v
delivery package
dimension                            770*470*570mm
net weight 15kgs
gross weight                       22kgs.
