Optical Bga Rework Machine Zm R 7220A

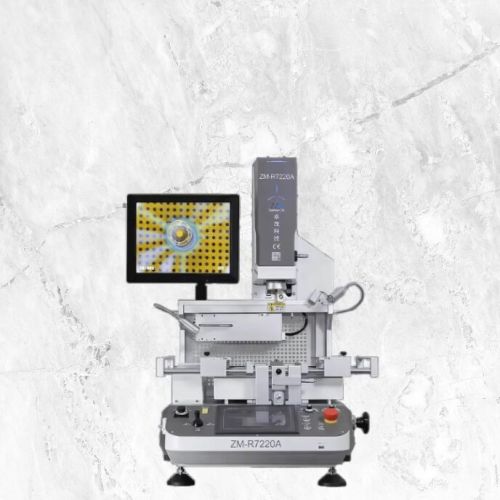

The Optical BGA Rework Machine ZM R 7220A is a high-performance BGA rework station designed for precise and efficient repair of PCBs and BGA chips. Built with advanced technology, it features a powerful heating system with top, bottom, and infrared heaters, ensuring even and controlled heat distribution for complex rework tasks. With an intelligent programmable controller and computer connectivity, this machine offers excellent flexibility and control for users.

Device Model: ZM-R7220A

Power Supply: AC 220V ± 10%, 50/60Hz

Total Power: Maximum 5300W

Heater Power:

• Top Heater: 1200W
• Bottom Heater: 1200W
• IR Heater: 2700W

Electrical Materials: Features an intelligent programmable controller with the ability to connect to a computer for enhanced control and customization.

Temperature Control: Uses a K-type thermocouple in a closed-loop system for independent temperature control, offering high precision with an accuracy within ±1°C.

Positioning System: V-groove with PCB support for stable and accurate positioning during repairs.

Dimensions: 680mm (Length) x 640mm (Width) x 960mm (Height)

PCB Size:

• Maximum: 415 x 370mm
• Minimum: 6 x 6mm

BGA Chip Size:

• Maximum: 60 x 60mm
• Minimum: 0.6 x 0.6mm

Color: White

Weight: 79kg

Key features of the ZM R7220A include:

• High-resolution touch screen for easy operation
• Automatic placement and desoldering capabilities
• Real-time temperature monitoring with over-temperature protection
• Precision optical alignment for accurate rework
• Carbon fiber infrared heater for efficient heating and cooling

The Optical BGA Rework Machine ZM R7220A is an advanced tool designed for high-precision repair of BGA (Ball Grid Array) components. This machine is equipped with an innovative optical alignment system, ensuring precise placement and rework for even the smallest components, including those as small as 2mm².
