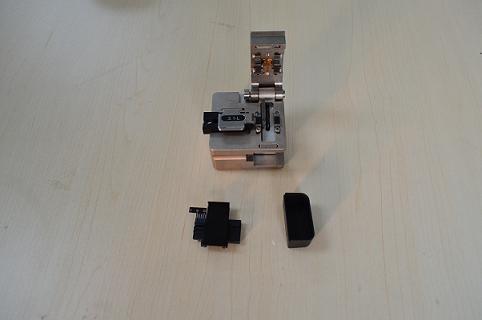

Optical Fiber Cleaver, Dimension : 63mm(W)×76mm(D) ×63mm(H)

₹ 12,012 / 135 135 Set

MOQ1 Set(s)
Dimension63mm(W)×76mm(D) ×63mm(H)
AvailabilityAround 425g
Cutting the fiber length10~16mm(φ0.25) 10~16(φ0.9)
Blade life36000 times
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

Dimension63mm(W)×76mm(D) ×63mm(H)
AvailabilityAround 425g
Adapt fiberSingle quartz fiber
Adapt fiber coating diameterφ0.25 & φ0.9
Cutting angle fitness≤0.5°
Cutting the fiber length10~16mm(φ0.25) 10~16(φ0.9)
Adapt bare fiber diameter125μm
Blade life36000 times

We offer Optical Fiber Cleaver.
ALK66-A Optical Fiber Cleaver,China Fusion Splicer Fiber Cleaver
Product Features:
Applicable fiber: single bare fiber diameter
quartz fiber cutting: 125μm
fiber coating diameter: 250 ~ 900μm
cutting angle: less than 0.5 ° (single fiber)
Cutting length: 13mm
Blade cutting life: 25,00 times * 16 surface rotation using
Imported ultrafine particles of tungsten steel alloy made of rigid material, the international leader in process of production from the edge of the mirror surface finish, quality is stable and reliable.
100 times magnification zoom blade, into a complete curve, no uneven.
Chipping blade under the microscope at 200 times as 0.003mm:
Cutter size weight: 70L × 54W × 58H (mm) 238g (150g, length 70 * 54 * 52 feature on the machine)
