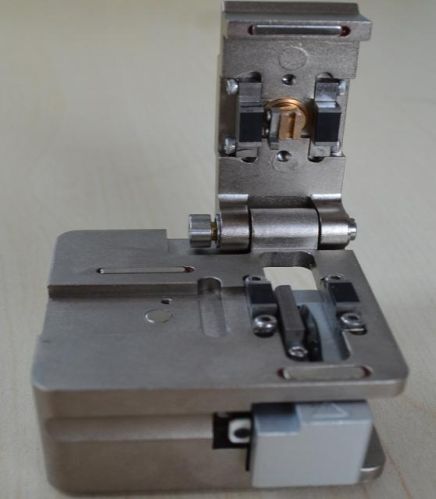

Optical Fiber Cleaver, Packaging Type : gray

We are offering alk66-a optical fiber cleaver.
Alk66-a optical fiber cleaver,china fusion splicer fiber cleaver
product features
applicable fiber:single bare fiber diameter
quartz fiber cutting 125um
fiber coating diameter:250 ~ 900um
cutting angle:less than 0.5 (single fiber)
cutting length 13mm
blade cutting life25,00 times * 16 surface rotation using
imported ultrafine particles of tungsten steel alloy made of rigid material, the international leader in process of production from the edge of the mirror surface finish, quality is stable and reliable.
100 times magnification zoom blade, into a complete curve, no uneven.
Chipping blade under the microscope at 200 times as 0.003mm
cutter size weight70l × 54w × 58h (mm) 238g (150g, length 70 * 54 * 52 feature on the machine)
basic specification
adapt fiber single quartz fiber
adapt fiber coating diameter dia.0.25 & 0.9
adapt bare fiber diameter 125um
cutting the fiber length 10~16mm(0.25) 10~16(0.9)
dimensions 63mm(w)×76mm(d) ×63mm(h)
weight around 425g
cutting angle fitness ≤0.5
blade life 36000 times
package
1* fiber cleaver with blade
1* single fiber adapter
1* cut-off collector
1* carrying case
in common cases, the fiber cleaver could be worked well with the fusion splicers of other brands,cause the fiber adapter we assembled is the usually used type, if you need a check whether this fiber cleaver is fit for your splicer ,please feel free to contact with us!
shipping –
1. We will only ship to your requested address.
2. Items will be shipped in 1 day after bidding (except traditional holidays in china).
3. We will proceed shipping via the epacket. Other regions that could not be via the epacket will be shipped by standard air mail with tracking number. If you have personal request on shipping method, please you contact us.
4. We are’t responsible for the custom duties or other taxes at destinations.
