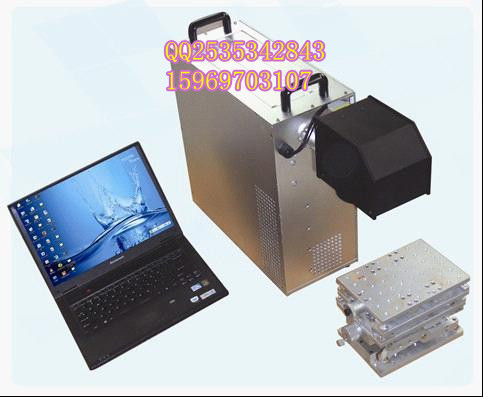

Optical Fiber Marking Machine

Optical fiber marking machine
optical fiber marking machine
specification:
standard rgv-f5 rgv-f10 rgv-f20
laser power density 40 mw/ mm2 80mw/ mm2 160 mw/ mm2
average laser power 5w 10w 20w
optical maser wavelength 1060nm 1060nm 1060nm
beam quality m2 1.6-1.8 1.6-1.8 1.6-1.8
laser repetition frequency 20khz-80khz 20khz-80khz 20khz-80khz
engraving range 30mm*30mm-300mm*300mm 30mm*30mm-300mm*300mm 30mm*30mm-300mm*300mm
engraving depth 0.2mm 1.0mm 2.0mm
engraving line speed ≤12000mm/s ≤12000mm/s ≤12000mm/s
mlw 0.006mm 0.006mm 0.006mm
minimum characters 0.09mm 0.09mm 0.09mm
repeat precision 0.00002mm 0.00002mm 0.00002mm
the power consumption 160w 200w 220w
cooling mode wind wind wind
weight of machine 20kg 20kg 20kg
power demand 220v/50hz 220v/50hz 220v/50hz
outline dimension 400*340*200mm 400*340*200mm 400*340*200mm
we can also customize our machines according to your requirments.
