Optical Laser Source

Get Latest Price

Output Power> - 6dBm @ 1310nm/1490nm/1550nm/1625nm / > -10 dBm @ 850nm/1300nm
Storage Temperature-20 -- +60℃ , < 90%RH
Power SupplyAA * 2 batteries or AC/DC power supply adapter
ConnectorFC/PC (or customize)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhejiang Tribrer Communication Limited

Shanghai

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Output Power> - 6dBm @ 1310nm/1490nm/1550nm/1625nm / > -10 dBm @ 850nm/1300nm
Size(H*W*D)160mm * 75mm * 32mm
Modulation270Hz, 1KHz, 2KHz
Storage Temperature-20 -- +60℃ , < 90%RH
Operating Temperature-10 -- +50℃ , < 90%RH
Stabilization*±0.05dB / 1 hour; ±0.1dB / 8 hours
Battery ChargeYes
Power SupplyAA * 2 batteries or AC/DC power supply adapter
ConnectorFC/PC (or customize)
Auto Power OffNo operation in 10 minutes (can be canceled), Low battery energy
WeightAbout 180g

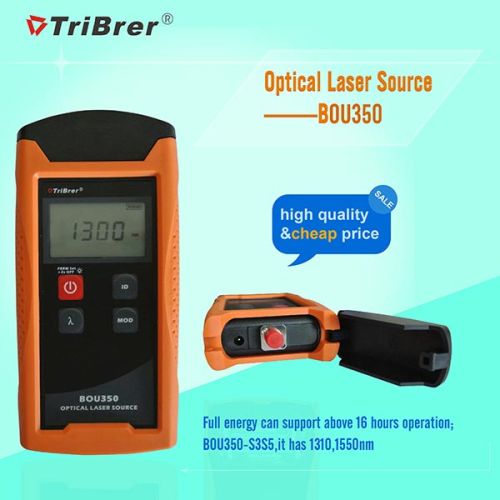

Laser source is part of the toolbox essentials working in pair with optical power meters to measure the optical attenuation and eliminate the faults when telecom technicians install or maintain optical fiber networks. Tribrer bou350 series laser sources are well designed for first-class versatility -- it offers stabilized laser signal, as well as various wavelengths.with a rugged design, tribrer bou350 series laser sources are built for top ruggedness and versatility,perfect for the harshest test conditions to verify the continuity and evaluate fiber link transmission quality.
Features:
1~3 wavelengths output from one port
high stabilization, build in optic isolator;;
270, 1000, 2000 hz tone
auto wave id output(should work with tribrer optical power meter);
energy save mode;
power autonomy of 16 hours ;
one-year warranty and three-year recommended calibration interval.
