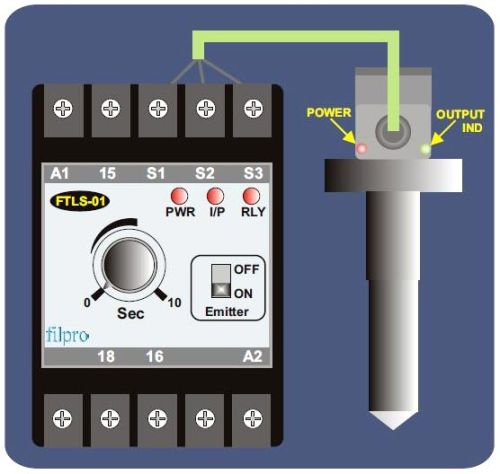

Optical Level Sensor

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are a well-known optical level sensor manufacturer, supplier and exporter. Optical level sensor, available with us, is fabricated with top grade raw materials. The optical level sensor ensures reliable and trouble free performance over a long period of time. Clients can avail precision engineered optical level sensor from us at the leading market prices.

View More Details

Send Enquiry

Technical Specifications

Supply Voltage	90-280V AC, 50 Hz
Power Consumption	3 VA
Output	1 C/O Potential Free Relay Contact Rated 10Amps@250V AC/24V DC.
Input	12V DC 3 wire optical level sensor (Prism Type)
Output Delay	On Delay : 0-10 Secs Adjustable. 0 Secs Fixed

Connection Details

A1, A2	90-280V AC/50 Hz
S1	Terminal 1 of Sensor or Din Connector
S2	Terminal 2 of Sensor or Din Connector
S3	Terminal 3 of Sensor or Din Connector
15	Output Relay Common
16	Output Relay NC.
18	Output Relay NO.
