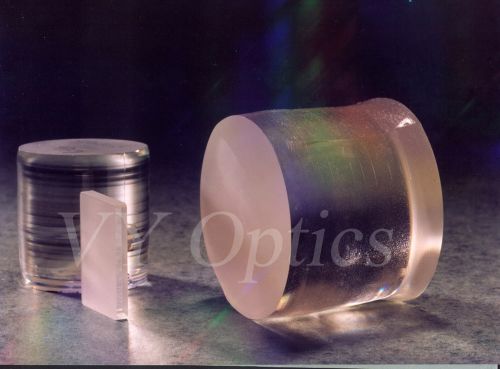

Optical LiNbO3 Crystal Lens - (linbo3)

Lithium niobate(linbo3) crystal lens is widely used as frequency doublers for wavelength > 1 mm and optical parametric oscillators (opos) pumped at 1064 nm as well as quasi-phase-matched (qpm) devices. Due to its large electro-optic (e-o) and acousto-optic (a-o) coefficients.
we manufacture linbo3 crystal lens professionally.
Basic properties of optical linbo3 crystal lens as follow:
crystal structure:trigonal, point group 3m
lattice parameters:a=b=5.148 , c=13.863
density:4.64 gcm3
melting point:1250 degrees
curie point:1142+- degrees
mohs hardness:55
dielectric constant :e11e0 = 85; e33e0 = 29.5
thermal conductivity:38 wm egrees at 25 egrees
thermal expansion coefficient:a1=a2 =2x10-6 egrees, a3=2.2x10-6 degrees at 25degrees
piezoelectric strain constant:d22 = 2.04 x 10-11 cn, d33 = 19.22 x 10-11 cn
elastic stiffness constant:ce11 = 2.04 x 1011 nm2, ce33 = 2.46 x 1011 nm2
