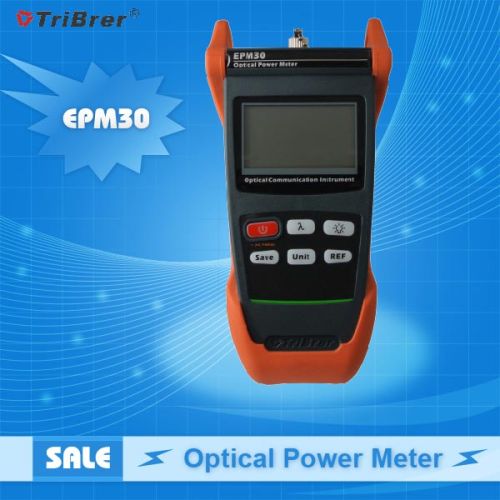

Optical Power Meter

Get Latest Price

AvailabilityAbout 400g
Resolution0.01dB
Wave ID (Optional)Yes
Size(H*W*D)190mm *90mm * 40mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhejiang Tribrer Communication Limited

Shanghai

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

AvailabilityAbout 400g
ConnectorFC, SC & 2.5mm UPP, ST (optional) or customize
Storage Temperature-20 -- +60℃ , < 90%RH
Battery LifeAbove 100 hours (1800mAH battery)
Battery ChargeYes
Wave ID (Optional)Yes
Calibrated Wavelengths850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Reference Value storageYes
Operating Temperature-10 -- +50℃ , < 90%RH
Power SupplyAA * 2 batteries or AC/DC power supply adapter
Resolution0.01dB
Data Storage40 traces
Build in VFL (Optional)1mW or 10mW or customize
Size(H*W*D)190mm *90mm * 40mm
Accuracy *±0.2 dB
Auto Power OffNo operation in 10 minutes (can be canceled), Low battery energy

Power meters are part of most essential tools for all technicians installing or maintaining optical fiber networks.tribrer power meters are well designed for all kinds of demanding applications on fiber measurement with different functions and parameters. With a rugged design, tribrer epm30 series power meters are built for top ruggedness and versatility,perfect for the harshest test conditions to verify the continuity and evaluate fiber link transmission quality.
Features:
fc, sc, st adapters and 2.5mm upp ;
85013001310149015501625nm;
data storage
built in vfl (optional);
energy save mode;
reference value storage;
power autonomy of 100 hours;
one-year warranty and three-year recommended calibration interval.
