Optical Power Meter

Get Latest Price

AvailabilityAbout 100g
LED LightSOS code output
Accuracy *±0.2 dB
Size(H*W*D)105mm *52mm * 34mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhejiang Tribrer Communication Limited

Shanghai

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

AvailabilityAbout 100g
Display Resolving Power0.01dB
Storage Temperature-20 -- +60℃ , < 90%RH
Battery ChargeYes
LED LightSOS code output
Linearity±0.1dB
VFL Connector2.5mm universal
Operating Temperature-10 -- +50℃ , < 90%RH
Calibrated Wavelengths850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Automatic Power OffNo operation in 10 minutes (can be cancelled), Low battery energy
Size(H*W*D)105mm *52mm * 34mm
Accuracy *±0.2 dB
Size105mm * 52mm * 34mm
OPM Connector2.5mm universal and FC (SC, ST adapter optional)
Power SupplyAA * 2 batteries or AC/DC power supply adapter
Battery LifeAbove 100 hours (OPM)
VFL Output1mW or 10mW, CW and Glint

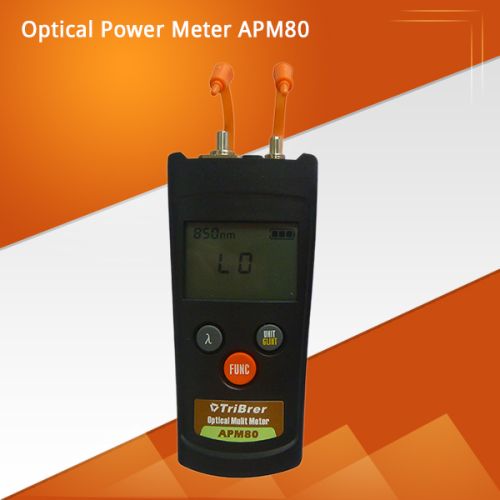

We offer Optical Power Meter.
Power meters are part of most essential tools for all technicians installing or maintaining optical fiber networks.tribrer power meters are well designed for all kinds of demanding applications on fiber measurement and net measurement with different functions and parameters. With a palm design,tribrer apm80 series power meters are built for total handhold uses and pocket carrying,perfect for the ftth in-house narrow test conditions to verify the continuity and evaluate fiber link transmission quality.
Features:
visual fault locator apm80-v series
led light and “sos” glint
optical power meter apm80tc
wide measurement range, high resolution;
sm or mm applications;
2.5mm universal and fc, sc, st;
85013001310149015501625nm;
auto power off (can be canceled);
power autonomy of 100 hours (opm) ;
one-year warranty and three-year recommended calibration interval.
