Contact SupplierWe are offering optical power meter.

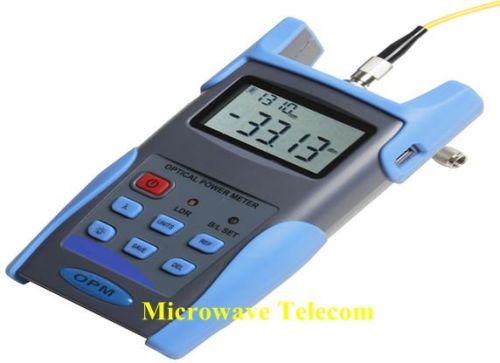

M-216 handheld optical power meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.compared with other usual power meters, the m-216 has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via usb port. combined with m-116 handheld optical light source, it offers a quick and accurate testing solution on both sm and mm fibers.features. wave idauto wavelength identification & switching . frequency id ---auto frequency identification. 2 types of backlight modes, manual or outside light intensity, which indicated by led light red or blue color. intelligent backlight . 1000 records storage or download via usb cable. usb communication port for saved testing records download. reference power level can be set up and stored. user self-calibrating function. auto-off function . up to 200hrs battery life
specifications
model m-216a m-216c
calibration wavelengthnm 850/1300/1310/1490/1550/1625
detector type ingaas
measurement rangedbm -70+6 -50+26
uncertainty (db) 0.153.5%
linearity (db) 0.02
display resolution(db) 0.01
frequency idhz 2703301k2k
wave idnm 1310149015501625
date storage capacity 1000
communication port usb
connector fc/sc/st interchangeable
alkaline battery 3*aa1.5v
power adapter(v) 8.4
battery operating time (h) 200 without backlight
operation temperature(℃) -10°+60
storage temperature(℃) -25°+70
dimension(mm) 175*90*44.5
weight(g) 231.
