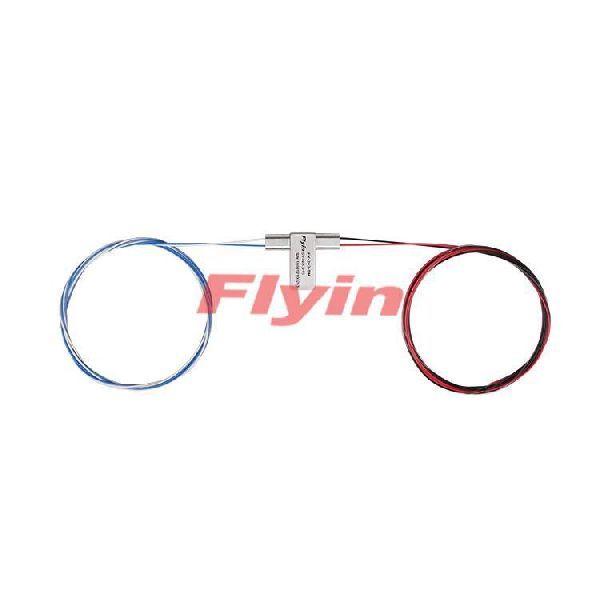

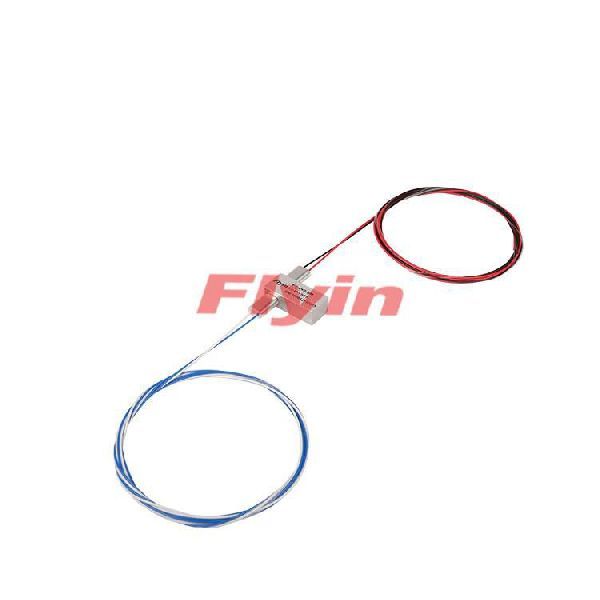

Flyin Optronics' 2x2 Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
| Features | Applications |
| Unmatched Low Cost | Optical Network |
| Low Insertion loss | Protection/Restoration |
| High Channel Isolation | Optical Singnal Routing |
| High Stability, High Reliability | Configurable Optical Add/Drop |
| Epoxy-free on Optical Path | Transmitter and receiver protection |
| Latching and Non-latching |
| Parameter | FY-2×2-MM/SM | |
| Wavelength Range（nm） | 850±40 | 1260~1650 |
| Operating Wavelength | 850±40 | 1310/1490/1550/1625/1650 |
| Insertion Loss（dB） | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss（dB） | MM≥30 | SM≥50 |
| Crosstalk（dB） | MM≥65 | SM≥70 |
| Polarization Dependent Loss（dB） | ≤0.05 | |
| WaveLength Dependent Loss（dB） | ≤0.25 | |
| Temperature Dependent Loss（dB） | ≤0.25 | |
| Repeatability（dB） | ≤±0.02 | |
| Power Supply（V） | 3.0 or 5.0 | |
| Lifetime（time） | ≥10^7 | |
| Switch Time（ms） | ≤8 | |
| Transmission Power（mW） | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Weight(g) | 16 | |
| Dimension（mm） | （L）28.0×（W）12.6×(H)8.0 | |
