Optical Time-domain Reflectometer

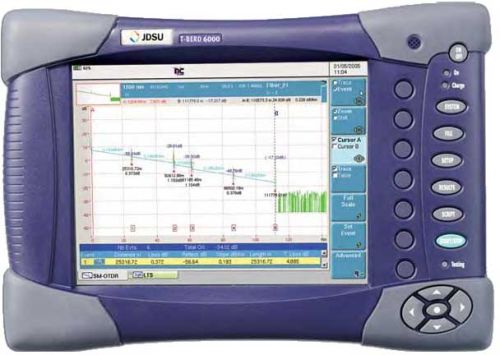

We are offering optical time-domain reflectometer. The mts-6000 is a compact and lightweight test platform designed for the installation and maintenance of fiber networks. It offers field service technicians the highest levels of performance and upgradeability on the market. Modular in design, the mts-6000 offers an extensive portfolio of test functionality, with over 40 different fiber modules supporting a wide range of applications, and is a single source for future fiber and photonic testing needs.
Key features:
1) lightweight platform: only 2.4kg5.3 lbs.
2) large 8.4 inch transreflective tft color display improves viewing under any conditions.
3) intuitive graphical user interface with touch screen option.
4) extended battery life using smart lithium ion cell.
5) connection checker with vfl, power meter, and loss test set and video inspection scope options.
6) built-in optical talkset option for communicating along the fiber.
7) unique automatic bi-directional analysis function available to save up to 50% test time for otdr, il, and orl measurements.
8) fast data transfer via usb,ethernet port and 1gb extended memory option.
9) comprehensive suite of pc software tools for post-processing of test results with fiber trace (ofs-100)12 and fiber cable (ofs-200)13.
