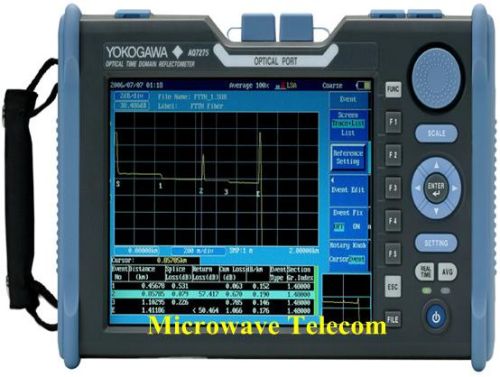

Optical Time Domain Reflectometer, Brand Name : YOKOGAWA

Features:the world’s shortest dead zone, less than 0.8m(2.7ft)supporting ftth to core networks multiple functions: optical monitor, light source, built-in printer, built-in dummy fiber large and bright 8.4inch lcd on a lightweight, compact and solid bodyless than 10 second power-up time
specifications
applicable fiber no. Of wavelengths wavelength dynamic range model descriptions
smf 1 1650nm 30db 735031 1650nm model, supporting maintenance wavelength of 1650nm including1310/1550nm cut filter.
2 1310/1550nm 34/32db 735032 standard model for installation and maintenance of ftth
2 1310/1550nm 40/38db 735033 standard model for installation and maintenance of metro and access network
2 1310/1550nm 43/41db 45/43db(typ.) 735034 high dynamic range model for installation and maintenance of core and metro network
3 1310/1490/1550nm 34/30/32db 735035 3-wavelength model for pon system, supporting 1490nm
3 1310/1550/1625nm 40/38/33db 735036 3-wavelength model, supporting a maintenance wavelength of 1625nm including 1310/1550nm cut filter
3 1310/1550/1650nm 40/38/30db 735037 3-wavelength model, supporting a maintenance wavelength of 1650nm including 1310/1550nm cut filter.
3 1310/1550/1625nm 40/38/36db 735038 3-wavelength model, supporting a maintenance wavelength of 1625nm　
mmf 4 850/1300 nm1310/1550 nm 22.5/24 db(62.5gi) 21/22.5db(50gi)40/38 db(sm) 735041 4-wavelength model for installation and maintenance of lan and ftth with support for both multimode and single mode fiber. Dynamic range is specified when measuring 50gi fiber.
Standard package:
no. name quantity
1 power line 1
2 ac/dc adapter 1
3 bag 1
4 user manual 1
5 trace analyzing software(cd) 1
6 hard carrying case(including gallus) 1
7 special gallus of instrument 1
note:for the necessity of improvement, the material contained in this document is subject to change without notice.
