Optical Transceiver

We are offering optical transceiver,.

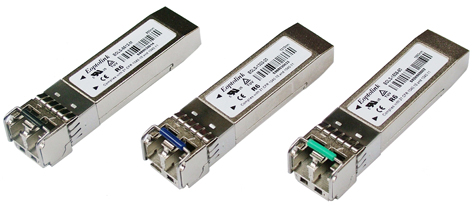

The eoptolink 4g series is small form factor pluggable module for 4x2x1x fibre channel and 1000base-bx gigabit ethernet single fiber communications. It is with the sfp 20-pin connector to allow hot plug capability. The transmitter section uses class 1 laser compliant according to international safety standard iec 60825. The receiver section uses an integrated detector preamplifier (idp) mounted in an optical header and a limiting post-amplifier ic.
Features:
fiber bi-directional sfp optical transceiver
up to 4.25 gbs
compliant with fibre channel fc-pi 400200100
compliant with ieee 802.3ah-2004 1000base-bx
simplex lc connector or sc connector
acac coupling according to msa
single +3.3 v power supply
rohs compliant
0 to 70c, -10 to 85c or -40 to 85c case operation temperature ranges
class 1 laser international safety standard iec 60825 compliant
package part no. fiber type data rate range wavelength optical components distance case temperature range ddm
sfp eols-8548-02 mmf ≤ 4.25gbps 850nm vcselpin 150m com.ind. d
sfp eols-1348-05-d smf ≤ 4.25gbps 1310nm fppin 5km com.ind. d
sfp eols-1348-10-d smf ≤ 4.25gbps 1310nm dfbpin 10km com.ind. d
sfp eols-1348-20-d smf ≤ 4.25gbps 1310nm dfbpin 20km com.ind. d
sfp eols-1548-40-d smf ≤ 4.25gbps 1550nm dfbpin 40km com.ind. d
sfp eols-1548-80-d smf ≤ 4.25gbps 1550nm dfbapd 80km com.ind. d
