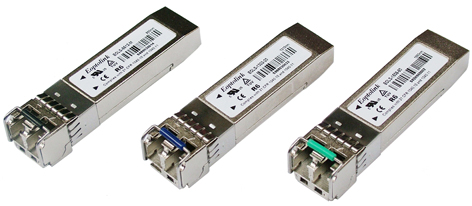

Optical Transceiver

We are offering optical transceiver,
the eoptolink's multi-rate series 2.67gbs transceiver module integrates optics and electronics in a small form factor pluggable (sfp) package. It is multisource agreement (msa) compatible and designed for operation at 1310 nm and 1550 nm. Although optimized for oc-48stm-16, it provides multi-rate capabilities and can be used from oc-3stm-1(155 mbs) up to 2.7 gbs. Multirate sfp transceiver provides a fully oc-48 sonet compliant interface between the sonetsdh photonic layer and the electrical layer. Its microprocessor - based modular design implements all features specified in the sfp msa compatible 2-wire serial digital diagnostic monitoring interface for optical transceivers. Oc-48 stm-16 is a network line with transmission speeds of up to 2488.32 mbits (payload: 2405.376 mbits; overhead: 82.944 mbits).
Oc-3stm-1 is a network line with transmission speeds of up to 155.52 mbits (payload: 148.608 mbits; overhead: 6.912 mbits, including path overhead) using fiber optics. Depending on the system oc-3 is also known as sts-3 (electrical level) and stm-1 (sdh). These modules are also used for fast ethernet application.
Oc-12 or stm-4 is a network line with transmission speeds of up to 622.08 mbits (payload: 601.344 mbits; overhead: 20.736 mbits).
Package part no. fiber type data rate range wavelength optical components distance case temperature range ddm
sfp eols-1303-2m-d mmf ≤ 155mbps 1310nm fppin 2km com.ind. d
sfp eols-1303-15-d smf ≤ 155mbps 1310nm fppin 15km com.ind. d
sfp eols-1303-40-d smf ≤.
