Optical Transceiver

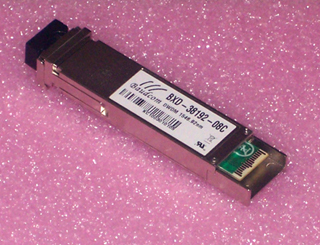

We are offering 10gbps dwdm xfp 80km optical transceiver.
Baudcom dwdm xfp transceiver optical module exhibits excellent wavelength stability, supporting operation at 100 ghz channel, cost effective module. It is designed for 10g dwdm sdh, 10gbase-zr and 10g fiber- channel applications.
the transceiver consists of two sections: the transmitter section incorporates a colded eml laser. And the receiver section consists of a apd photodiode integrated with a tia. All modules satisfy class I laser safety requirements. Baudcom dwdm xfp transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
features
wavelength selectable to c-band itu-t grid wavelengths
suitable for use in 100ghz channel spacing dwdm systems
xfp msa compliant
data rate from 9.95 gbps to 11.1gbps
no reference clock required
cold start up wavelength compliance
dwdm-rated eml transmitter and apd receiver
link length up to 80km
low power dissipation 3.5w maximum
-5to 70 degreeoperating case temperature
diagnostic performance monitoring of module temperature, supply
voltages, laser bias current, transmit optical power, receive optical power
rohs compliant and lead free
applications
sonet oc-192&sdh stm 64
10g ethernet
80 km 10g fiber channel
dwdm networks
