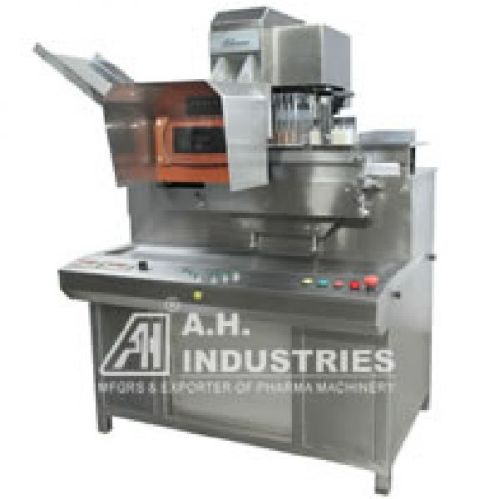

Optical Visual Ampoule Inspection Machine

• All contact parts in stainless steel.and approved engineering plastics.

• Spinning of ampoule/vial.Magnifyed view with back lighting

• Clear view of six ampoule/vial.

• Modular and compact ejection system.

• Rotation of spinners can be adjusted to give desired vortex on liquid

• Easy access for cleaning and maintenance.

• Large inspection to transport time ratio..

• Facility of repeat cycle.

• LED as well buzzer assisted safe rejection.

• Counters for good and reject products.

• The filled ampoules are loaded in to the infeed chute/ hopper from where they are transferred in batches by an index wheel onto a linear transfer rack.

• The rack transfers the ampoules onto the inspection station, where spinners spin the ampoules at a predetermined RPM so that a vortex is formed. Illumination from behind the ampoules assists in light refraction of particles/fibers .

• An operator views six ampoules through a magnifying glass.

• The ampoules are rejected by pressing rejection switches ergonomically located for operator convenience. A numbered light positioned just above the magnifying lens within the operator's field of vision lights up indicating a rejection In case a recheck is desired before checking the next lot, a facility for repeat cycle is provided.

• The ampoules batch is then transferred onto the rejection station where the ampoules rejected at the inspection station are automatically ejected out. A numbered light lights up above the lens indicating a positive rejection taking place. In addition a rejection LED as well buzzer assists in tracking the actual rejects of objects.

• The accepted ampoules are transferred onto the collection station where there are collected in a tray.

• MACHINE IS SUPPORTED WITH DOUBLE BACKGROUND OPTION TO DETECT BLACK AS WELL WHITE PARTICALS
