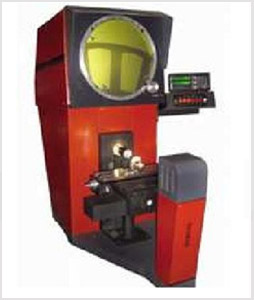

Optomech Profile Projector,

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Screen Dia 400mm with Crosswire Work table 475mm x 125mm Work Table Swivel 15 Degrees Measuring Traverse X-Axis 200 mm x Y-Axis 100 mm Magnification/Projection Lens 10X Magnification Accuracy....

View More Details

Send Enquiry

Company Information

Gem Engineering Industries India Pvt. Ltd.

Cherlapalli, Hyderabad, Telangana

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Screen Dia 400mm with Crosswire Work table 475mm x 125mm
Work Table Swivel 15 Degrees Measuring Traverse X-Axis 200 mm x Y-Axis 100 mm
Magnification/Projection Lens 10X Magnification Accuracy Contour/Profile Illumination ± 0.10% Surface Illumination ± 0.15% Scale Resolution 0.001mm (Electronica make)
Rotary Protractor Resolution 2 Minutes of arc Focus Travel 75mm
Green Filter, Profile Illumination, Surface Illumination Digital Read-Out (DRO)
System Smart 2003 (Electronica make)
Work Piece Capacity 300mm Between Centers 150mm Diameter
Work Piece Load 20Kg Illumination Source 24V 150W Tungsten Halogen Lamp.
