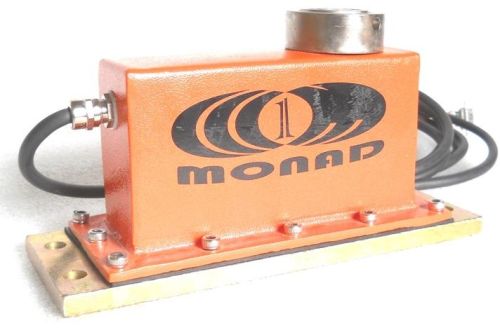

Model FDM11 is specifically designed to be used where fast acquisition of a stable load signal is recquired. The model FDM11’s unique fluid damping system allows the loadcell to be used in applications that previously required the use of LVDT’s or similar types of measuring devices. The model FDM11 brings load cell adaptability into check weighing and grading applications. Sealed to IP66 level and available in coated steel or stainless steel, the model FDM11 is suitable for most wash-down applications. | ||||||||||||
|
| Parameter | Value | Unit |
| Rated Output-R.o. | 2 | + mV/V |
| Rated Output Tolerance | 0.2 | + mV/V |
| Zero balance | 0.1 | +mV/V |
| Zero Return, 30 min. | 0.030 | +% of applied Load |
| Total Error | 0.030 | +% of rated output |
| Temperature Effect On Zero | 0.0025 | +% of rated output/ C |
| Temperature effect on output, unbalanced | 0.00810 | +% of Load/ C |
| Temperature Range, Compensated | -10 to +40 | C |
| Temperature Range, Safe | -20 to +70 | C |
| Maximum Safe Central Load | 150 | % of R.C. |
| Ultimate central overload | 200 | % of R.C. |
| Excitation, recommended | 10 | Vdc or Vac rms |
| Excitation, maximum | 15 | Vdc or Vac rms |
| Input Impedance | 415+15 | ohms |
| Output impedance | 350+3 | ohms |
| Insulation Resistance | >1000 | mega-ohms |
| Cable Length | 15 | meter |
| Cable Type | 4 Wire | |
| Construction | Stainless steel | |
| Environmental protection | Ip68 |
