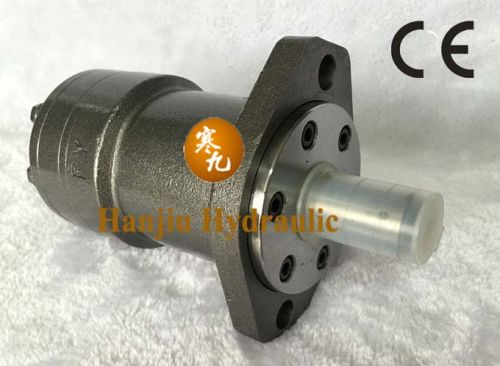

Orbit Hydraulic Motors

Hanjiu hydraulic orbit motor bm1 :
we are offering product description
type omp36 omp50 omp80 omp100 omp125 omp160 omp200 omp250 omp315
omp400 omp500
displacement
(ccrev) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
max torque
(n.m) cont 55 100 146 182 236 302 360 460 475 490 430
int 76 128 186 227 290 370 440 570 555 580 430
max pressure
(mpa) cont 12.5 14 14 14 14 14 14 14 9.0 7.0 7.0
int 16.5 17.5 14 11.5 9.0
max speed
rate
(rpm) cont 1500 1150 770 615 490 383 310 250 192 155 120
int 1650 1450 960 770 615 475 385 310 240 190 150
max flow
(lmin) cont 55 60 60 60 60 60 60 60 60 60 60
int 60 75 75 75 75 75 75 75 75 75 75
weight
(kg) 5.6 6 5.7 5.9 6.0 6.2 6.4 7.0 6.9 7.4 8.0
hydraulic orbit motors omp series is popular applied in:
-winch in boat -plastic injection moulding machine -sweeper machine
- lawn mower -road line marker-wheat harvest machine and other light machinery-car tail lift
typical feature
1. High pressurre of shaft seal
3. Phosphating coating to protect from rusting
2. Freely disassemble leakage ports
4. Needle bearing
hydraulic orbit motor applications:
brush cutters
mower
haveresting equipment
forestry equipment
turf equipment
