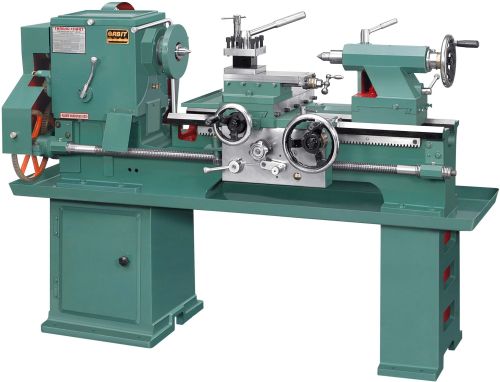

We deal in a very wide range of Lathe machines.Our range consists of Conventional Lathes, cone pulley belt lathes, All Geared Lathes, Roll turning lathes, CNC Lathes, precision tool room lathes, general purpose lathes, pipe threading lathes and SPM lathes for very specific purposes.Our Lathe machines are most suited for Precision Tool Rooms, Roll turning applications, PVC pipe threading, and a host of other turning applications.
| Particulars/Model | MD-0 | MD-1 | MD-2 | MD-3 |
| Length of Bed | 4.50' | 5.00' | 6.50' | 7.50' |
| Height of Center | 9.00" | 9.00" | 9.00" | 9.00" |
| Maxi. Swing over Bed | 16" | 16" | 16" | 16" |
| Maxi. Swing over Carriage | 11.0" | 10.5" | 10.5" | 10.5" |
| Admitt between centers | 18" | 24" | 42" | 54" |
| Width of Bed | 11.00" | 11.00" | 11.00" | 11.00" |
| Length of Gap infront of Face Plate | 4" | 5" | 5" | 5" |
| Spindle Bore | 2.00" | 2.00" | 2.00" | 2.00" |
| Lead Screw Diameter | 1.00" | 1.25" | 1.25" | 1.25" |
| Lead Screw Pitch | 4 TPI | 4 TPI | 4 TPI | 4 TPI |
| Reqd. Power in H.P. 3 Phase 1440 RPM | 1.5 H.P. | 1.5 H.P. | 1.5 H.P. | 1.5 H.P. |
| RPM can be obtained MIN / MAX | 45/550 RPM | 45/550 RPM | 45/550 RPM | 45/550 RPM |
| No. Of Speeds | 6 | 6 | 6 | 6 |
