Contact SupplierWe are offering orbital wrapper,

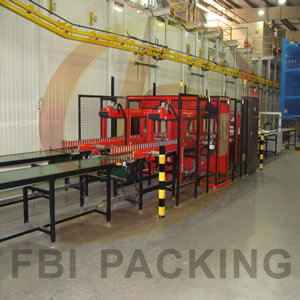

wmh301 horizontal wrapper is designed for stretch wrapping of bar type products , such aluminum profiles, plastic extruded profiles, wood & frame, etc. Stretch wrapping is a cost effective way to protect these products against dust, moisture or scratch during transport and storage.
The machine could be customized according to specific products and different field requirements.
main parameter:
ring diameter: 900mm
wrapping size: w550mm×h550mm max
wrapping length: more than 1m, length adjustable
rotation speed: 25-60rpm, speed adjustable
conveyor speed: 5-8mmin, speed adjustable
conveyor length: made to order
power: 3ph, 380vac, 5060 hz, 20a, others as an option
features:
plc control, touch screen.
Rotation speed and conveyor speed adjustable.
Pneumatically driven pressing devices effectively hold the products during wrapping.
Photocell automatically sense the products and starts wrapping.
Auto film clamp & cut.
