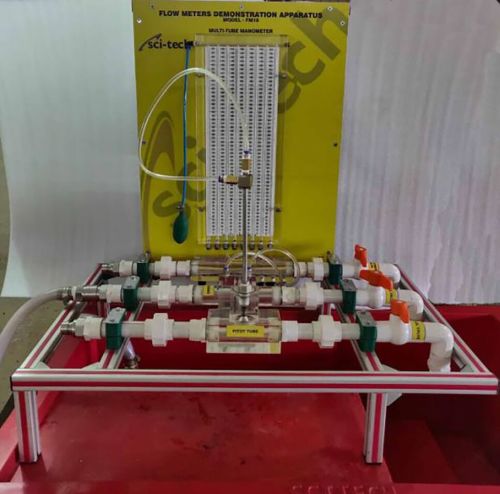

Sci-tech orifice-meter Set up for Education

Sci-tech Orifice-meter, Venturi-meter & Rota-meter set up Model FM 46 is self-sufficient unit to study the characteristics of Orifice meter, Venturi-meter & Rota-meter. The calibration of these meters can be study by comparing with actual flow measured in measuring tank. The orifice & Venturi is made of clear acrylic material to understand its operation phenomenon. Venturimeter & Orifice meter is mounted in such fashion that at a time we can select one of them & conduct the experiment. Rotameter is placed in supply line of pump to operating table.

Pressure tapings are provided at appropriate location for measurement of differential pressure with Mercury U tube manometer. Variable flow can be achieved for various reading set. For the particular flow we can compare the reading.

The Test set up of the Trainer can be used along with the ‘Sci-tech Hydraulic Bench FM 100. The test set up system will be supplied with orifice meter, venturimeter, rotameter, Base for these unit and all essential accessories.

LIST OF EXPERIMENTS

• Calibration of Flow meters.
• Flow measurement using venturimeter, orifice meter, variable area flow meter like Rotameter
• Demonstration of use of different flow meter & its comparisons
• Determination of flow coefficient.
• Comparison of pressure drops across venturimeter & Orifice meter.
• Study of Coefficient of Orifice Cv, Cd, Cc

SYSTEM COMPONENTS

Orifice plate meter flowmeter:

-       :14mm

-       Measuring nozzle: 18.5mm

-       Made of transparent plastic / perplex / plexi - glass.

Venturi tube:

^-                A=84…338mm²

-       Angle at the inlet:10.50

-       Angle at the outlet:40

-       inlet and outlet diameter 25 mm NB

-       Made of transparent plastic / perplex / plexi - glass.

Rota meter:

-       Variable area with capacity 180-1800 LPH.

Measuring ranges

Pressure: 6x0…390mmWC

1. Different methods of flow rate measurement

2. Measuring instruments: orifice plate flow meter/measuring nozzle, venturi nozzle and rotameter

3. 6 tube manometers to determine the pressure distribution in venturi nozzle, orifice plate flow meter and measuring nozzle

4. measurement of the total pressure with pitot tube

5. flow rate determined by base module for experiments in fluid mechanics

OPTIONAL ACCESSORIES

• ‘Sci-Cal’ Data Acquisition System for Fluid Mechanics Experiments
• Multimedia computer based training package on Flow meters
• Cut sections of valves & pumps
• Transparencies & Slides
