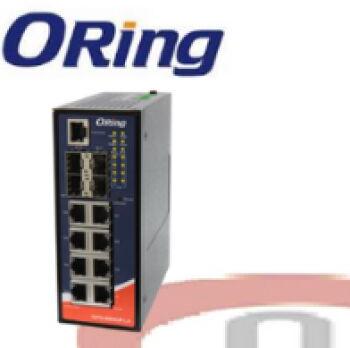

ORING IGPS-9084GP-LA Industrial Slim 12-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(

Listing ID #6956285

IGPS-9084GP-LA is layer2 managed PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 20ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9084GP-LA also support Power over Ethernet, a system to transmit electrical power up to 30 watts, total PoE power budget is 240W max, along with data, to remote devices over standard  for instance) that will provide power in a PoE connection.  And support wide operating temperature from -40 oC to 75 oC.  IGPS-9084GP-LA can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.

• • Support O-Ring(recovery time < 30ms over 250 units of connection) andMSTP(RSTP/STP compatible) for Ethernet Redundancy

  • Open-Ringsupport the other vendor's ring technology in open architecture

  • O-Chain allow multiple redundant network rings

  • Support standard IEC 62439-2 MRP*note  (Media Redundancy Protocol) function

  • 8 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port

  • Support PoE on/off scheduled configuration

  • Support PoE alive check and auto reboot fuction

  • Support IPV6 new internet protocol version

  • Support EtherNet/IP™ and Modbus TCP protocol

  • Support IEEE 802.3az Energy-Efficient Ethernet technology

  • Provided HTTPS/SSH protocol to enhance network security

  • Support SMTP client and NTP server protocol

  • Support IP-based bandwidth management

  • Support application-based QoS management

  • Support Device Binding security function

  • Support DOS/DDOS auto prevention

  • Support auto-negotiation and auto-MDI/MDIX

  • Support full and half duplex mode

  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic

  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management

  • Support ACL, TACACS+ and 802.1x User Authentication for security

  • Support 9.6K Bytes Jumbo Frame

  • Syslog/SNMP Trap notification for warning of unexpected event

  • Support DBU-01 backup unit device to quickly backup/restore configuration

  • Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration

  • Support LLDP Protocol

  • Robust EMS design, provide 8K ESD and 4KV Surge protection

  • Rigid IP-30 housing design

  • DIN-Rail and wall mounting enabled
  *NOTE: This function is available by request only
