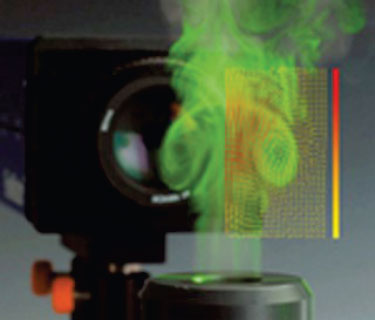

LaVision FlowMaster system family evaluates three-dimensional velocity vector fields from scattered light patterns of particles or droplets seeded into the flow (liquid or gas). Techniques like Particle Image Velocimetry (PIV) and Particle Tracking Velocimetry (PTV) are supported. LaVision's FlowMaster PIV cameras can record two successive images within min. time < 100 ns for ultrafast cross-correlation and speeds up to Mach 4. Standard 2D-PIV (2D2C) measures two velocity components in a plane using a single CCD or sCMOS camera. Stereo-PIV(2D3C) measures three velocity components in a plane using two cameras. Time-resolved PIV measures two or three velocity components in a plane at high frame rates up to 25000 fps Tomographic PIV (Tomo-PIV) measures three velocity components in a volume (3D3C) using two or more cameras. Micro-PIV measures two or three velocity components of particle seeded flows with micron scale spatial resolution.

Liquid and gas flow investigations in wind tunnels, water channels, in-cylinder engines industrial flow systems, compressors, turbines, fans, pumps, Micro Electro Mechanical Systems (MEMS)
