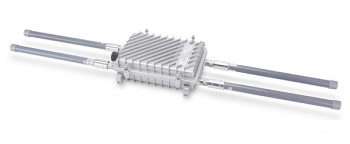

Stable Performance Outdoor 4G Wifi Router, Brand Name : HCYL

₹ 5,400 - ₹ 7,740 / pcs

FrequencyStable Performance
Connectivity TypeWifi, 1year
Brand NameHCYL
ConditionStable Performance
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Shenzhen Huachuangyilian Electronics Company Limited

Member Since 3 Years
Nature of Business Manufacturer
Year of Establishment 2018

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

FeatureStable Performance
Country of OriginStable Performance
ConditionStable Performance
FrequencyStable Performance
PowerStable Performance
Power SourceStable Performance
Total Carbohydrate1year
Range1year
Speed1year
Connectivity TypeWifi, 1year
Brand NameHCYL
FunctionOutdoor Using
WAN Ports1*10/100Mbps WAN port
Products StatusStock
ApplicationOutdoor
Antennas4*External High Gain Antennas(2pcs wifi antennas, 2pcs 4G antennas)
Product NameOutdor 4G LTE CPE Router
ChipsetMTK7620A
Flash/RAM16MB/128MB
SystemopenWRT
Wifi Rate2.4G, up to 300Mbps

Simple Description

HC540-H is a 3G/4G WiFi router specially for Outdoor using.This device has Wide Area Network VPN tunnel and Local Area Network WiFi security authentication function, which can realize the seamless connection between the wireless LAN and wireless WAN, providing high speed,safe and reliable broadband service. It supports TD-SCDMA,WCDMA,CDMA2000, LTE-TDD, FDD-LTE 3G / 4G cards. Moreover, it also provide 1 USB 2.0, 1 MICRO SD card slot (TF) to support storage extensibility.

HC540-H use metal case with outdoor anti-interference and waterproof design, which is to achieve excellent anti-interference performance. It is professional outdoor application environment.

Product Specification

Hardware
Main Chipset	MT7621A
RAM	DDR2 128MB （MAX DDR2 256MB）
SPI FLASH	16MB （MAX 32MB）
Protocol	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE802.3.
Wireless Transmission Power	802.11b: 18dBm±2dBm 802.11n: 15dBm±2dBm 802.11g: 15dBm±2dBm
Receiver Sensitivity	802.11b: -83dBm@10%PER 802.11g: -74dBm@10%PER 802.11n: -68dBm@10%PER
Work Channel	2.4GHz: Channel 1-13
Wireless Speed	300Mbps
Work Frequency	2.4GHz
Antenna	8dBi omnidirectional antenna
Interface	1 USB 2.0 port 1 Micro SD card slot 1SIM Card Slot 110/100M LAN port
LED	PWR.WAN.USB,WLAN,LAN,3/4G
Button	Reset Button
Max Power consumption	< 12W
Software
WAN Type	PPPoE, Dynamic IP, Static IP
Work Mode	AP; Router;
DHCP Server	DHCP Server Client List Static Address Assignment
Virtual Server	Port Forwarding,DMZ Host
Security Settings	Client Filter Mac address filtering URL Filter Remote WEB management
DDNS	Support
VPN Pass-Through	Support
Bandwidth Control	Support
Static Routing	Support
System Log	Support
Others
Work Environment	Operating Temperature：0℃ ~ 70℃； Storage Temperature：-40℃~ 70℃； Relative Humidity：10%~90% non-condensing Storage Humidity：5%~95% non-condensing
Adapter	9V ~ 28V available

Additional Information

Payment Terms T/TWestern Union
Port of DispatchShenzhen
Packaging Details1pcs outdoor wifi router 2pcs RJ45 patch cable 2pcs mounting brackets 1pcs POE power adapter
Delivery TimeSample: around 3 days after payment; Order: around 15-25 days after payment
