Outdoor Articles Laser Cutting Machine

Product Feature

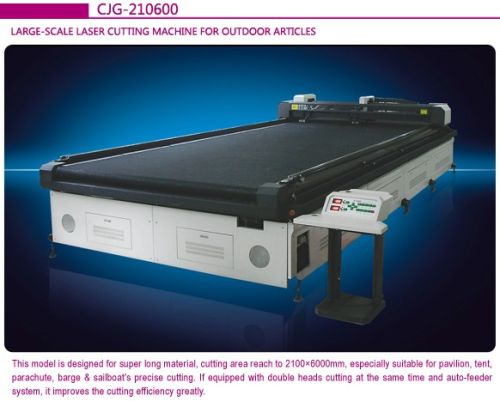

This model is designed for super long material, cutting area reach to 2100×6000mm, especially suitable for pavilion, tent, parachute, barge & sailboat's precise cutting. If equipped with double heads cutting at the same time and auto-feeder system, it improves the cutting efficiency greatly.
Application Field
Suitable for variety of textile, fabric and industrial flexible material.
Outdoor product: Inflatable product, air balloon, rescue boat materials, sailboat material, sailing vessel, tent, coated fabric, fire balloon, parachute, rubber boat, tarpaulin etc
Technical Parameter
Laser type CO2 RF Metal Laser tube
Laser power 150W
Cutting area 2100mm×6000mm Vacuum absorb conveyor working table
Cutting(no-load)speed 0-24000mm/min
Positioning accuracy +/-0..1mm
Control system Nesting office control, 5 inch display
Cooling system water chiller cooling system
Laser power adjustment Following laser power adjustment
Power supply AC220V±5% / 50HZ
Format support AI, BMP, PLT, DXF, DST etc
Standard collocation Up exhaust filtration system, assisted air-compressor
Select collocation Outside exhaust pipe, auto-feeder system, multi heads cutting attachment
*Cutting area and laser cutting power can be customized according to requirement.*
Advantages of GOLDEN LASER Series:
* Continuous feeding and cutting for super long marker
* Large area edge cutting and small area hollowing technology
* Laser cutting is synchronous with marking system
* High efficiency saving materials and smart marking technology
* Leading pattern digitizing technology
* Mark point positioning cutting
* Excellent feeding and winding system
* Cutting control technology with digital movable multi-head for toys industry
---If you are interested in our products, please contact me(limu at goldenlaser.org) directly for quotation and offersheet.
