Outdoor Fiber Optic Cabinet

Get Latest Price

MOQ5 Set(s)
MaterialSMC or stainless steel
Number Of FlowerOutdoor splice cabinet
Case of high voltage protection and between the chassis pressure＞3000V(DC)/5S no breakdown, no flying fox
Protection LevelIP65
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Wuxi Orient Rising Sun Telecom System Equipment Co., Ltd

China

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1999

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialSMC or stainless steel
Number Of FlowerOutdoor splice cabinet
AdaptorSC,FC,ST,LC optional
Case of high voltage protection and between the chassis pressure＞3000V(DC)/5S no breakdown, no flying fox
Working environment-40℃~+85℃ 70kPa~106 kPa
Brand NameOST
Capacity144,288,576,1152 avaiable
Case of high voltage protection and chassis insulation, insulation resistance＞1000MΩ/500V(DC)
The connector loss (including insert, swaps and repeat)≤0.5dB
CertificationISO9001:2008，TLC
Insertion loss≤0.2dB
Return lossFC/PC≥40dB FC/SPC≥45dB FC/UPC≥50dB
Protection LevelIP65

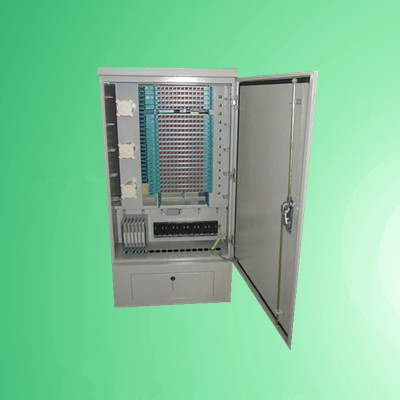

We are offering outdoor fiber optic cabinet-gxf5-205, features:
1.all the coners of the body use dedicated fillet mold;
2.surface with drawing process, good-looking appearance;
3.the body with double-layer structure,filled with high-performance insulation materials, good insulation effect to preven internal condensation effectively;
4.the door is equipped with special sealing materials,waterproof lock and three-piont bolt,excellent reliability and security,good sealing;
5.equipped with reliable cable fixing device and ground protection device;
6.cassette adapter:fc,sc,lc,st(also equipped with enclosure),arranged as 30°c,ensure the pigtail bend radius over40mm.avoid laser burning eyes and the roots of connectors could be injured when dispatching the fiber
application:
fttb, fttc, ftth, fttn, ftto.
