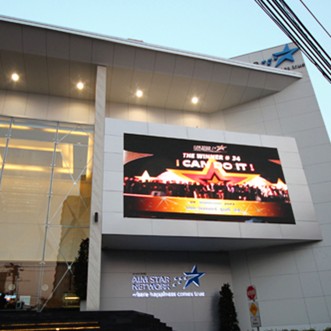

Contact SupplierOutdoor led screen:
pixel pitch:10mm,12mm,12.5mm,14mm,16mm,20mm,25mm,31.25mm,37.5mm
function:
1. Module size:192 mm*192 mm
2. Pixel composing :1r1g1b
3. Multiplied file formats, such as avi, mov, mpg, dat, vob are comprehensive, and also we have three display mode as vga+vide and vga. There are also interfaces for sound signal and video signal.
4. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
5. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your pc does synchronously.
6. Line-double technology is adopted for the picture adjustment.
8. Can be connected with pc and the web net and show the content, and also can be controlled remotely via vpm+adsl.
9. Can be used outdoor in all kinds of weather, and excellent capability of antisepsis.
parameters of outdoor led screen:
pixel pitch 12mm
density 6944 pixel/sqm
pixel composing dip346
viewing angle 140(v)/140 (h) degree
brightness 5000 mcd
driving way constant static 1/4
control way real pixel
module size 192mm*192mm
cabinet size 1152mm*768mm
cabinet resolution 6144 pixels
cabinet weight 50 kg/sqm
max consumption 550w/sqm
avg. Consumption 220w/sqm
voltage ac220, 50hz or ac110, 60 hz
best view distance 15~40m
cabinet material iron/aluminum
power supply taiwan meanwell
lifetime >100,000h
working temperature -20°c~+55°c
gray scale 16bit
customer support:
at mellow, we give tremendous importance to customer relationship and the trust they have toward our products. The key for a long cunstomer relationship is not only to provide world-class led products but also to provide world-class customer services. With such service, the clients enjoy the benefits of our products to their maximum.
1. Warranty and maintenance
all our mellow products come with a warranty up to 2 years (depending on the products). Our led displays are manufactured to cope with any kind of extreme weather. But in the event of problem, our technical support service ensures that your led display operates with as little downtime as possible.
2. Installation support
our technicians & partners will facilitate your display installation. No need to call third-party companies to get and install your new acquisition or to rent heavy & expensive equipments, we are taking care of everything. We know the installation process from a to z.
