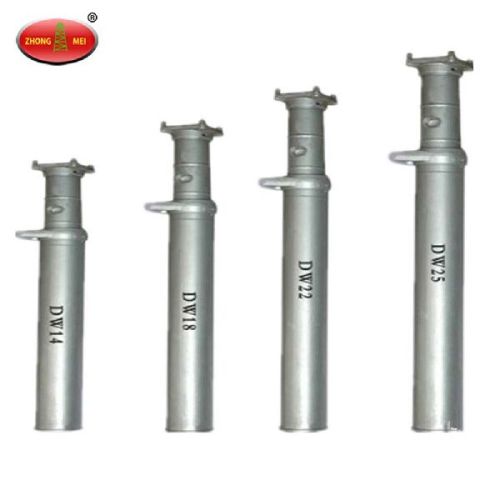

Outer Injection Coal Mining Hydraulic Acrow Prop

Introduction of DW Outer Injection Coal Mining Single Hydraulic Prop DW Outer Injection Coal Mining Single Hydraulic Prop increasingly widely used in the production of its traditional wooden pillars supporting metal friction compared with high recovery, supporting safe and reliable, working resistance constant, setting load is high, the use of flexible benefits. Outer single hydraulic prop can be used alone or in combination with metal hinged roof beams supporting the use, can be used in coal seam dip is less than 25. Stope roof gently inclined to pay, but also for mechanized coal face end support or temporary support available. Structure of DW Outer Injection Coal Mining Single Hydraulic Prop DW Outer Injection Coal Mining Single Hydraulic Prop is mainly composed of living, fuel tanks, three valves, cover, base body, reset spring handle body and a piston. DW Outer Injection Coal Mining Single Hydraulic Prop`s working principle is: When liter column, the liquid injection piping system with three guns insert liquid injection valve body, hung locking sleeve, operating liquid injection gun, pump high-pressure liquid injection fluid through the top opening with three guns valve ball-type check valve, into the pillar, forcing the live cylinder rises; When contacting metal hinged roof pillar roof beams and the top beam close to the face plate, live longer cylinder increases, the acrow prop`s a pressure chamber in a very short time and the same pump pressure
