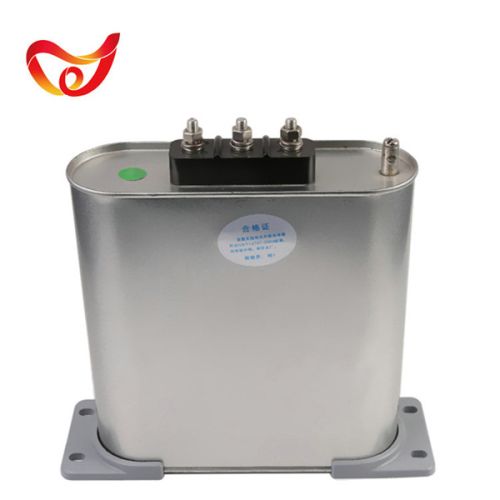

Siwoc Oval Compensating Capacitor

Features:

Self-healing property

Extremely stable performance and high degree reliability.

Anti-explosion design,more safety.

Brand self-healing type low voltage power capacitor made of the advanced metalized film，isproduced strictly in accordance with the foreign techniques and equipments.The device is mainly suitable for low voltage power network to improve power factor,reducreactive loss and better the voltage quality.

Small volume and light weight，only under 2/3 of the old one，Lt can be easy to install.

Agency Approvals:

CE Approved

Specifications:

Rated voltage：230VAC-1000VAC

Capacitance Range:1~100Kvar

Class of safety protection:S2

Operating temperature range:-25℃~+55℃

Capacitance Tolerance:-5%~  +10%

Insulation Resistance(IRxC):≥3000S（20℃，100V，1min)

Dissipation Factor:＜0.25W/Kvar

Maximum permissible voltage:1.1Un

Maximum permissible current:1.3In

Users select:

Other values and dimensions are available on request.

Packing:

Carton size：43.5*38*24.5cm

Packing information：8pcs/carton，Vacuum bag
