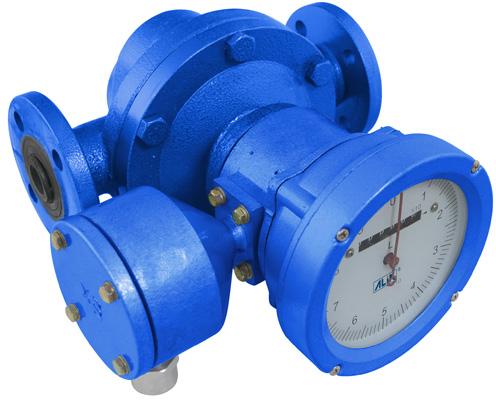

Oval Gear-alia Apf810 Positive Displacement Flowmeter.rotor Flowmeter

Apf810 series is designed in oval gear technology with digit display for totalizer & flowrate and providing scale pulse
and analog output.
Apf810 series oval gear flowmeters are both high accuracy and easily adaptable to most industrial applications.
Features
10 - 200 mm (38'' - 8'') lines sizes
handles viscosities up to 20,000 cp
wide range of application
various process connection types available
4 digit (resetable) +6 digit totalizer (mechanical)
4-20 ma or pulse output
high accuracy of +-0.5% of reading(or+-0.2% of reading)
direct-reading register with reset
specification
size:10,15,20,25,40,50,80,100,150,200 mm
flow range:0.03 - 340 m3hr
material:
body, cover & flange:cast iron cast steel s.s.304 s.s.316
oval gear:cast iron stainless steel 316
o-rings:viton
shaft sleeve:bronze graphite
register housing:aluminum alloy
max. Viscosity:0.3 - 200 cp (standard). 201 - 20000 cp (optional)
mechanical register:
4 digit totalizer (resetable)
6 digit + 1 pointer
resolution
0.01 liter (10 mm)
0.1 liter (15-25 mm)
1 liter (40 -80 mm)
10 liter (100 - 200mm)
protection class:ip65. Intrinsically safe, eex ia iic t5. Explosion proof, ex d iib t6
optional:
-heating jacket (heat oil or steam)
-strainers, t-type or y-type
-air vent, flange end
