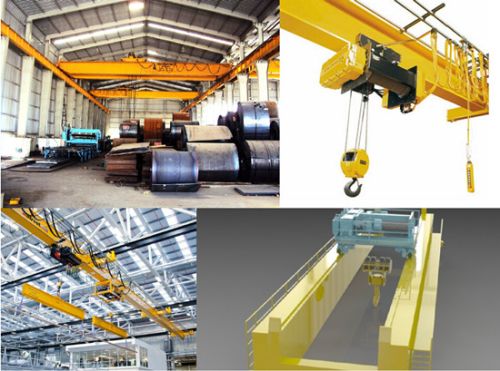

Overhead Bridge Crane

₹ 90,000 / 3000000 3000000 Set

MOQ1 Set(s)
Safety featureOverload alarm; Voltage lower protection; Emergency stop
Power resouce3-Phase 380V 50Hz
After-sales Service ProvidedEngineers available to service machinery overseas, provided
Control modeCabin/Wireless Control/Pendent Control
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

We offer Overhead Bridge Crane.
Advantages of a overhead bridge crane:
1. Greatest flexibility for hook coverage and control over the load
2. Fewest number of physical obstructions on your factory floor
Double Girder Overhead Crane
The double girder top running overhead crane is a very heavy duty crane, normally used by larger manufacturers and steel warehouses. Double girder overhead bridge cranes are an excellent choice where high speeds and heavy service are required. Double girder cranes are highly suitable for applications requiring walkways, lights and other special equipment.
Lifting capacity: 5-500 ton
Span length: 7.5-32m
Lifting height: 6-30 m
Working duty: Class D
Power: AC 3Ph 380V 50Hz or according to client's requirement
Control mode: Cabin controlremote controlcontrol panel with pendant line
Single Girder Overhead Crane
Single girder top running cranes utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.
The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.
Lifting capacity: 1-20 ton
Span length: 7.5-32 m
Lifting height: 6-30 m
Working duty: Class C or D
Power: AC 3Ph 380V 50Hz or according to client's requirement
Control mode: Cabin controlremote controlcontrol panel with pendant line
Safety spare parts:
•Overload protect device
•Crane switch and travel end switch
•Protection for Electrical part
•Emergency stop system
