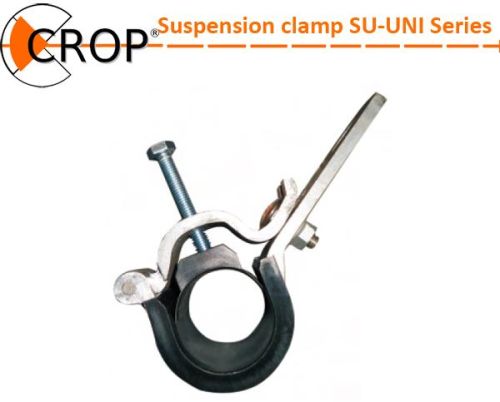

Overhead Lines Suspension Clamps

We are offering overhead lines suspension clamps 2-4x(16-120) mm2. Suspension clamp
product description:
used for the installation and suspension of lv abc cables to poles with standard hook attachment. Thanks to the integrated construction, no extra parts are needed for the installation. The body is made of corrosion proof aluminium and the inserts of weather resistant plastic.
suspension clamps are design to self supporting lv.abc from 1 to 4 cores,the angle can be self-asjusting.pilot wires or street lighting conductor are led alongside the clamp.
The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
ascx.y
a=number of core; sc=suspension clamp
x=min.section of conductor ;y=max.section of conductor
product range:
guaranted strength 10kn,slip~15kn,point of deformation~28kn,installation angle maximally30°.
used materials:
the wedge are made of weather&uv resistant fiberglass reinforced plastic ensuiring. ferrous parts are hot dip galvanized steel.
variants:
the product is manufactured and supplied in this form only.
storange and transport:
product do not have any specific requirements on storage. It is fire-resistant and it is not dangerous.
