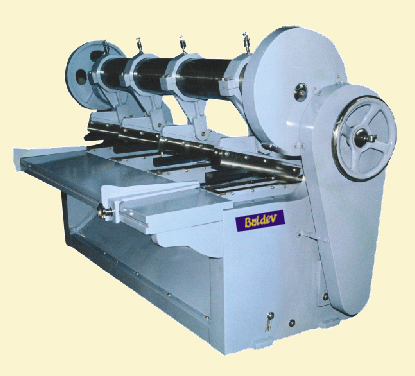

Overhung Eccentric Slotter

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

SPECIFICATIONS Three slots and one corner cutting is done simultaneously on this machine. The distance on the this machine. The distance between slotting and corner cutting heads are adjustable with gear and rack mechanism provided with the machine. Two side gauges are provided for accurate feeding. Minimum distance between two dies is 7″, Corner width is 4″ Belt Drive Three Soltting Heads. One corner head Shifting of heads is done manually Front steel table with 2 gauges

View More Details

Send Enquiry

Company Information

Baldev

Sudarshan Nagar, Amritsar, Punjab

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Size inch (mm)	Slot Depth	Min. dist. between mm	Stroke/ min Slots mm	Power reqd.	Floor Space in Mt.	Weight in kg. (approx.)
75”(1950)	19”(480)	6”(150)	30	2	2.5 x 1.4	2200
85”(2160)	19”(480)	6”(150)	30	3	2.8 x 1.4	2500
95”(2415)	19”(480)	6”(150)	30	5	3.2 x 1.4	3000
