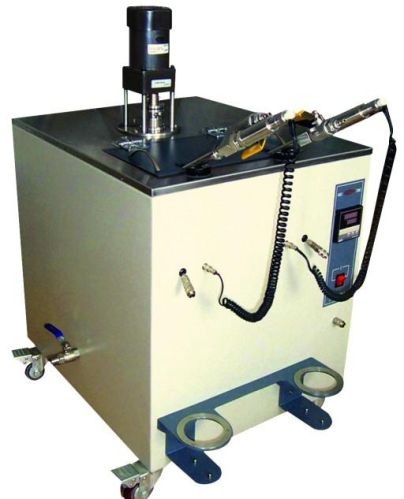

Oxidation Stability Test Equipment For Lubricating Oil

We offers oxidation stability test equipment for lubricating oil.
purpose:
gd-0193 oxidation stability test equipment is designed and made as per sht0193 and astm d2272. It is suitable to determine oxidation stability of new or in service turbine oil, which has the same components (base oil and additive). It is also a rapid method for determining the oxygen stability of new mineral insulating oils containing 2, 6-di-tert-butyl-p-cresol. It can check pressure, record test data, and calculate oxidation time for measured sample automatically. It can also end a test automatically.
it can save test curves and test data automatically when show them on the display. The operators can print them out when needed. The test can be completed automatically without any human involvement after you start a test. This significantly lowers down the labor intensity of operators and highly improves the accuracy of test data. It is the best choice of companies for selecting an automatic instrument.
instrument parameters
1 power supply ac220vã�â±10%
2 power of heater 2500 w
3 full scale of pressure sensor 0~1.6mpa
4 temperature controlling range of oil bath room temperature~200.0ã�â°c, adjustable; usually used is 150 ã�â°c
5 temperature controlling accuracy ã�â±0.1 ã�â°c
6 speed of rotary assembly 100ã�â±5 rpm
7 oil bath cubage 30 l
8 angle between and water surface 30 degree
10 size 550mm, 800mm, 1000mm
11 weight about 45 kg.
